Household Appliance Stability Test Bench for IEC 60335-1 Tilt and Inclined Plane Testing

Stability is an important part of household appliance safety and product quality. An appliance that appears stable on a level floor may behave differently when placed on an inclined surface, particularly when its center of gravity, supporting feet, doors, wheels, or liquid contents affect its balance.

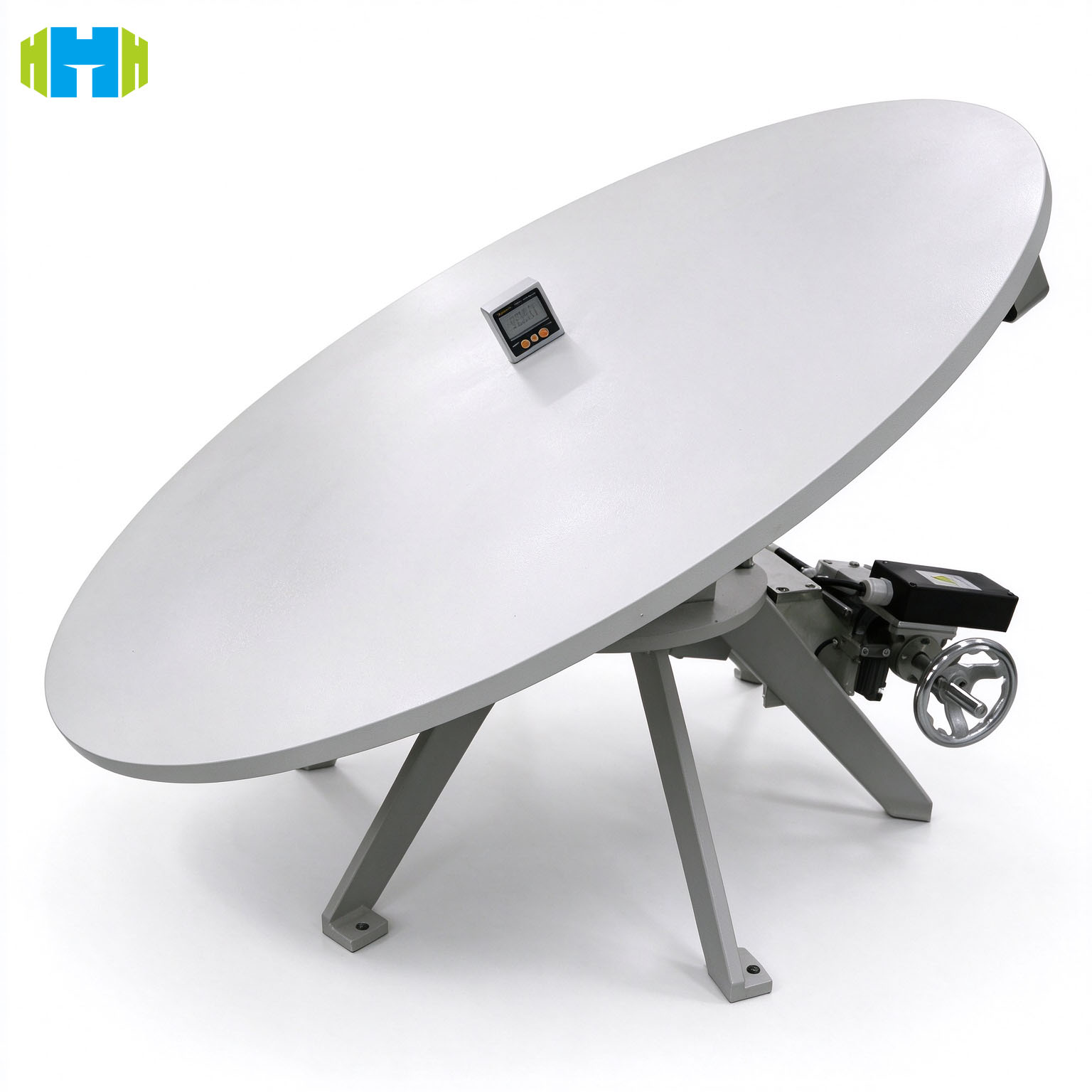

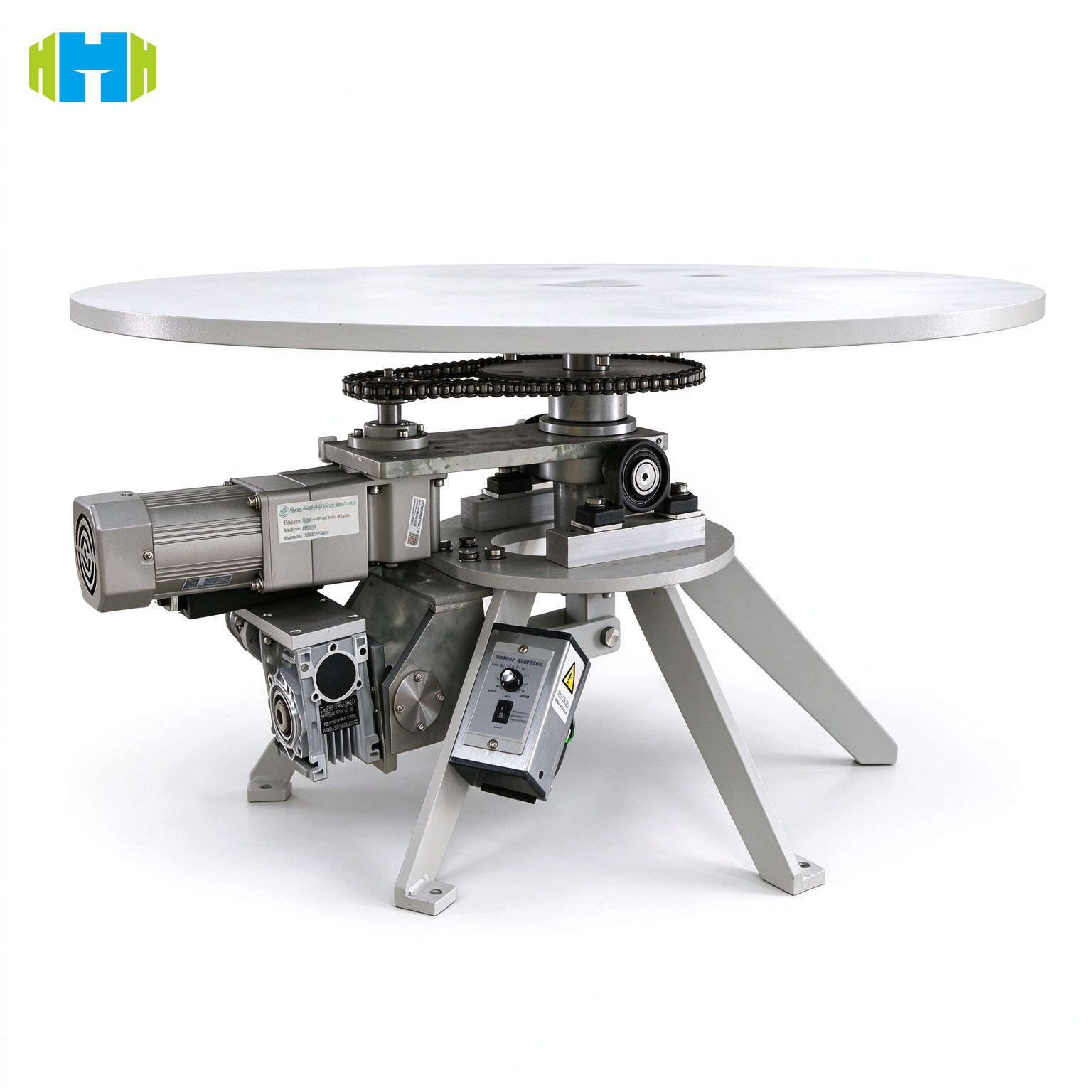

Household Appliance Stability Test Bench provides a dedicated platform for conducting controlled tilt tests. The test sample is positioned on the working surface, and the platform is adjusted according to the applicable test procedure. The resulting observations help engineers evaluate the appliance's resistance to overturning under specified conditions.

The tilting platform provides the necessary surface for evaluating appliance stability. The set tilt angle must comply with the standards and test procedures applicable to the product under evaluation.

This equipment is designed specifically for stability testing in accordance with Clause 20.1 of the IEC 60335-1 standard. Specific standard versions and any additional requirements should be confirmed based on the target market and product category.

Depending on the effective working area, load capacity, and fixture layout, this stability test stand can be used to test a wide range of household and similar electrical appliances.

The dedicated test platform provides a clear surface for operators to position samples and execute repeatable test procedures. Ensuring the platform is level, verifying the tilt angle, correctly positioning the sample, and properly restraining movable parts are critical to obtaining valid test results.

We handle the R&D and manufacturing of the test equipment, allowing for direct communication with customers regarding specifications, configuration requirements, technical documentation, and project-specific needs.

Our team provides assistance with requirement definition, product selection, operational guidance, and post-sales technical support. Equipment configuration and service arrangements should be agreed upon prior to order confirmation.

The Household Appliance Stability Test Bench supports the following testing activities when configured appropriately:

• Inclined-plane stability testing: Positioning an appliance on a sloping test surface according to the applicable procedure.
• Tip-over resistance evaluation: Observing whether the appliance overturns under the specified test conditions.
• Test-angle adjustment: Setting the required inclination within the confirmed adjustment range of the equipment.
• Multi-directional evaluation: Supporting tests in the required directions when the platform design and procedure allow.
• Sample-position verification: Checking appliance placement and its normal position of use before testing.
• Quality inspection and product development: Helping engineers identify stability-related design concerns.
• Test documentation: Recording the test angle, sample condition, test direction, and observed result as part of the laboratory's procedure.

The equipment provides the physical test platform. A compliance decision still depends on the applicable standard, the complete test procedure, the sample condition, and the evaluation of the test results.

IEC 60335-1 — Clause 20.1: Stability

IEC 60335-1 covers general safety requirements for household and similar electrical appliances. Clause 20 addresses stability and mechanical hazards, while Clause 20.1 specifically addresses appliance stability.

GB/T 4706.1 — General Requirements for Household and Similar Electrical Appliances

GB/T 4706.1 is the Chinese national standard covering general safety requirements for household and similar electrical appliances. Relevant editions include requirements for appliance stability. Laboratories should confirm the currently applicable edition and its corresponding clause before preparing a compliance test plan.

GB/T 4706.1 — General Requirements for Household and Similar Electrical Appliances

GB/T 4706.1 is the Chinese national standard covering general safety requirements for household and similar electrical appliances. Relevant editions include requirements for appliance stability.

The test platform must provide the inclination required by the relevant test procedure. The usable adjustment range and angle-measurement method determine which test conditions can be carried out on the selected configuration.

The working surface, supporting structure, levelling arrangement, and sample-positioning method influence the practical reliability of a test. The surface and any positioning accessories should be appropriate for the sample and must not unintentionally change the required test conditions.

Reliable comparisons require consistent sample positioning, the correct test angle, a controlled test direction, and consistent treatment of doors, cords, wheels, and liquid contents where applicable.

The operator follows the applicable test procedure and observes whether the sample meets the relevant acceptance criteria. The test bench supports the process; the standard and the laboratory's documented method determine how results are interpreted.

HONGCE is a source manufacturer of testing equipment, with product development, engineering design, and production capabilities. Customers can discuss technical requirements directly with our team instead of relying solely on a trading intermediary.

The appropriate test platform depends on the dimensions and mass of the sample, required inclination, test method, and laboratory workflow. We encourage customers to share these details before ordering so that the proposed configuration can be checked against their application.

Clear technical communication before purchase helps reduce specification mismatches. HONGCE can coordinate equipment documentation, operating guidance, and after-sales technical support according to the agreed scope of supply.

A useful equipment proposal should address the customer's test method, sample range, applicable standards, installation conditions, and documentation requirements—not simply the equipment price.

Direct communication can help shorten technical clarification, make configuration discussions more efficient, and improve coordination when the customer's requirements change during project preparation.

It provides an inclined test surface for evaluating whether applicable household and similar electrical appliances remain stable under specified test conditions.

IEC 60335-1 Clause 20.1 addresses stability requirements for applicable household and similar electrical appliances. The relevant edition and any product-specific Part 2 requirements should be confirmed for each application.

The standard describes a 10° inclined-plane test. For appliances incorporating heating elements, a further test at 15° is specified subject to the applicable requirements and exceptions. These are test conditions, not confirmation of the HJ0603BZ adjustment range.

These are common examples of products for which stability evaluation may be relevant. Suitability depends on the actual sample dimensions, weight, platform capacity, and applicable product standard.

Where required by the test procedure, wheels or castors may be blocked to prevent rolling. The operator must follow the applicable standard and avoid changing other required test conditions.

A basic stability test bench provides the physical test platform. Automatic evaluation or reporting should not be assumed unless the supplied configuration explicitly includes those functions.

The verified load capacity should be confirmed from the HJ0603BZ technical datasheet. Buyers should provide the maximum sample mass before ordering.
