Refrigeration Leak Testing: Why Your Helium System Costs 3x More Than Your Competitor’s

After visiting dozens of refrigeration manufacturing plants, the biggest waste we see over and over is poor leak test equipment selection.

Small factories making residential valves splurge on high-precision helium systems, tripling their cost and cutting throughput in half — for no actual quality gain. Plants making export heat exchangers cut corners with differential pressure, only to have entire shipments rejected at destination for leak failures — one rejection costs as much as three machines. Even more common: expensive equipment arrives, but tooling doesn’t fit right, helium runs through budget, false rejection rates swing wildly, and support goes dark. The more you try to fix it, the more problems you get.

When done right, leak testing balances precision, cost and cycle time. When done wrong, you either risk quality failures or burn budget. Drawing on real-world experience from hundreds of production lines across the refrigeration industry, this article breaks down selection logic for every application — from valves to complete systems, from production floor to field service.

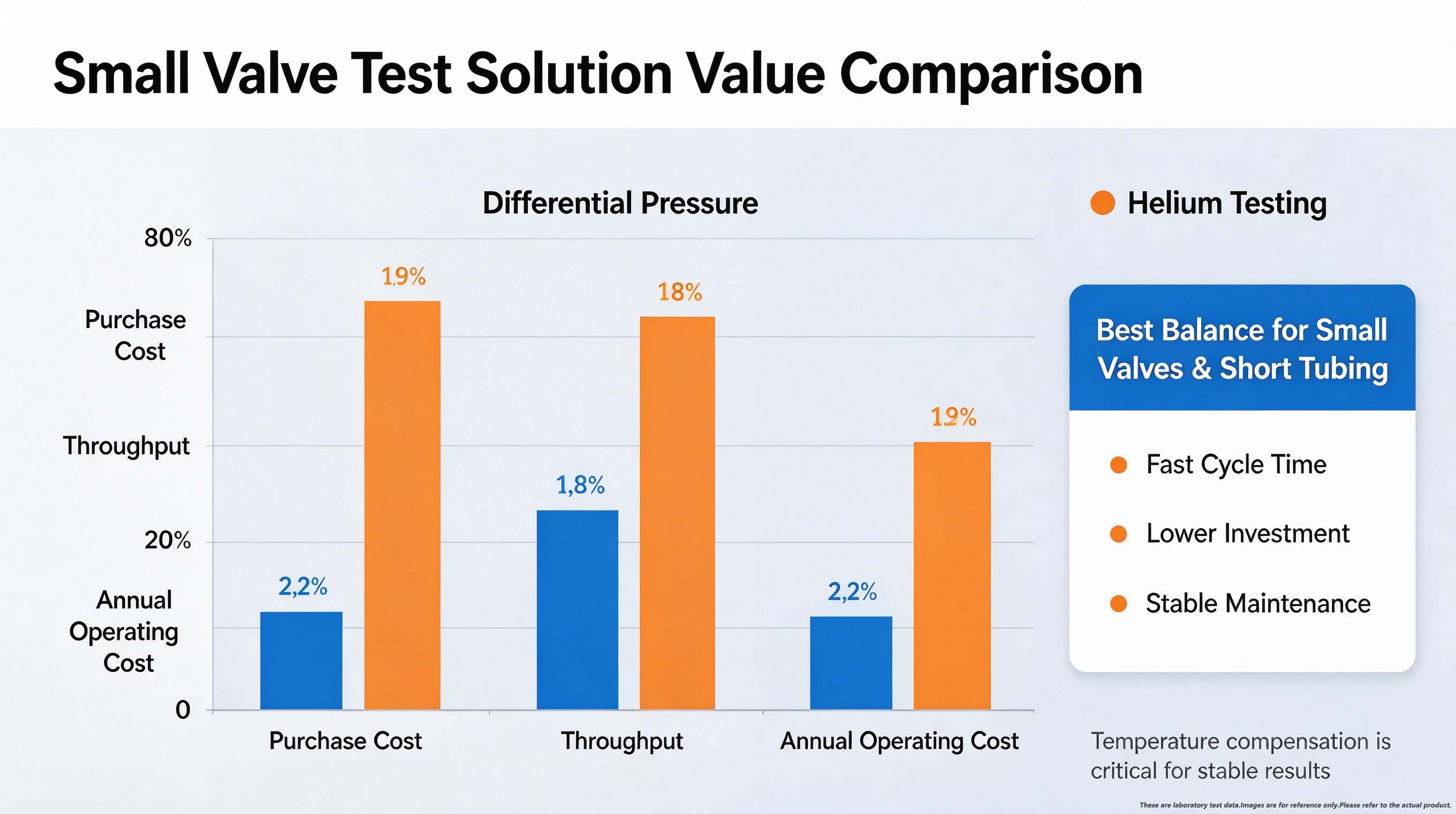

1. Small Valves & Short Tubing: Skip the Helium Overkill — Differential Pressure Wins on Value

There’s a common myth in selection: higher precision is always better. For solenoid valves, expansion valves and short tube assemblies, differential pressure is fully sufficient. Premium helium testing here is pure waste.

• Best for: High-volume production, fast takt requirements, leak rate requirements of 10⁻⁴~10⁻⁵ Pa·m³/s
• Advantages: Fast (10~20 seconds per part), 1/5 the cost of helium, near-zero maintenance
• Pitfall: Don’t buy cheap units without temperature compensation. Once shop temperatures swing between day and night, false rejection rates jump past 10%.

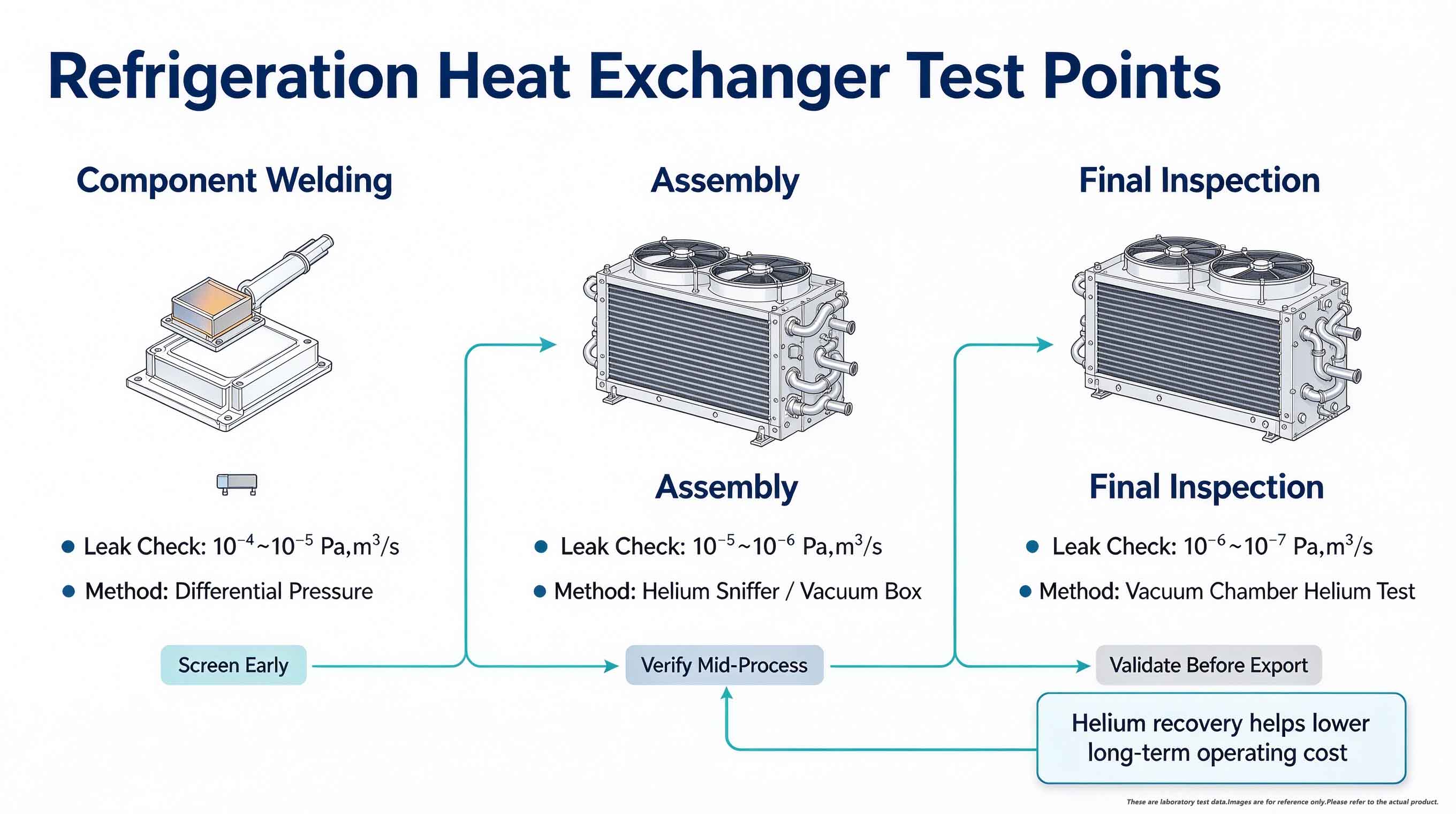

2. Evaporators & Condensers: Final Inspection — Helium Is Your Entry Ticket for Export

If differential pressure works for rough screening on valves, heat exchangers — with long weld seams, distributed leak points and direct refrigerant containment — absolutely require helium for final inspection.

Especially for export orders, commercial refrigeration and EV air conditioning — EU F-Gas regulations and domestic emission controls mandate quantified refrigerant leakage. Differential pressure can’t deliver accurate quantification or traceable data, and simply won’t pass audit.

• Best for: Finished heat exchanger, evaporator and condenser final inspection, 10⁻⁶~10⁻⁷ Pa·m³/s requirements

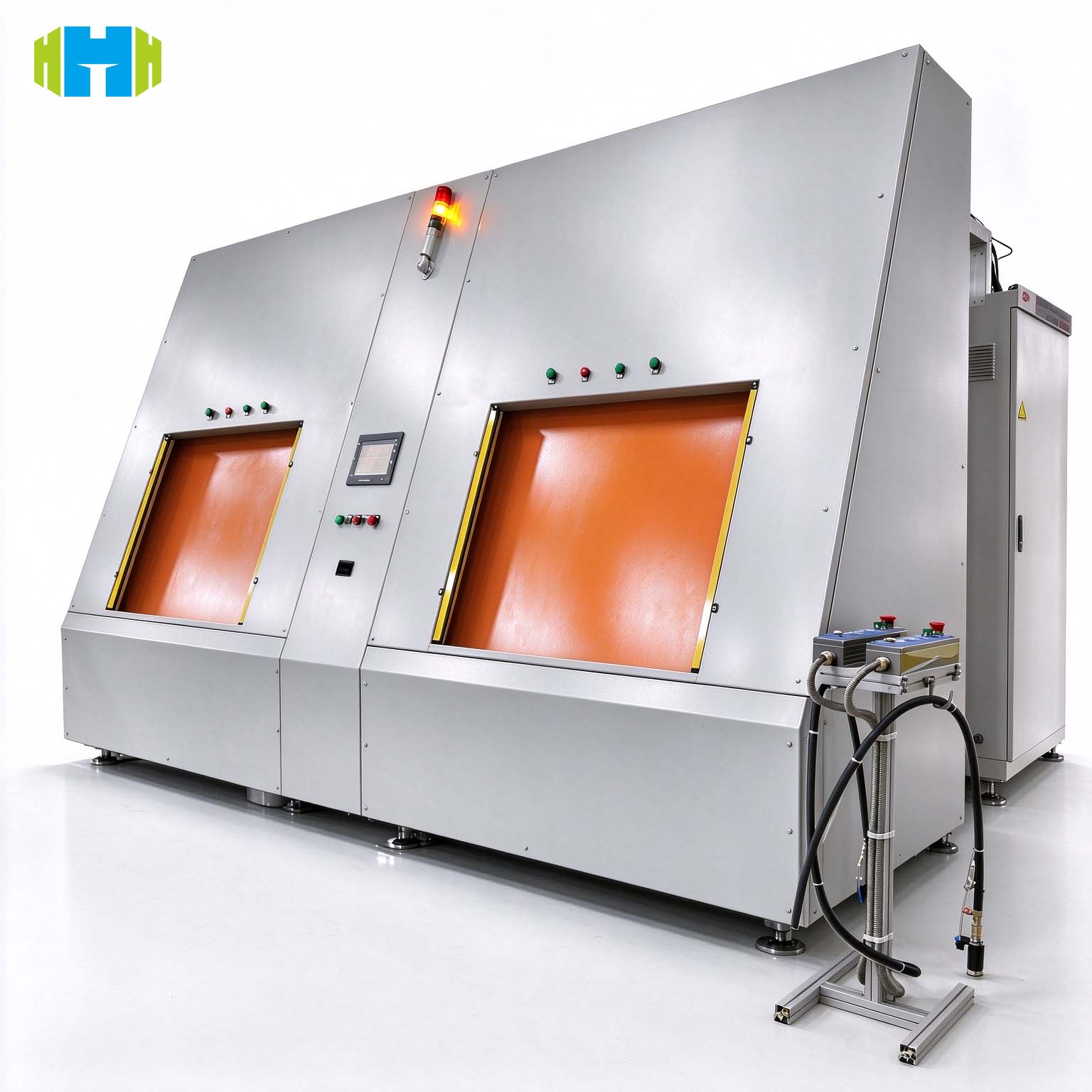

• Configuration: Standard vacuum chambers for small parts; custom large-format chambers for oversized heat exchangers. For high-volume lines, dual-station dual-chamber systems deliver sub-30-second cycles.
• Cost-saving tip: Always spec a helium recovery system. It costs more upfront, but pays for itself in helium savings within a year.

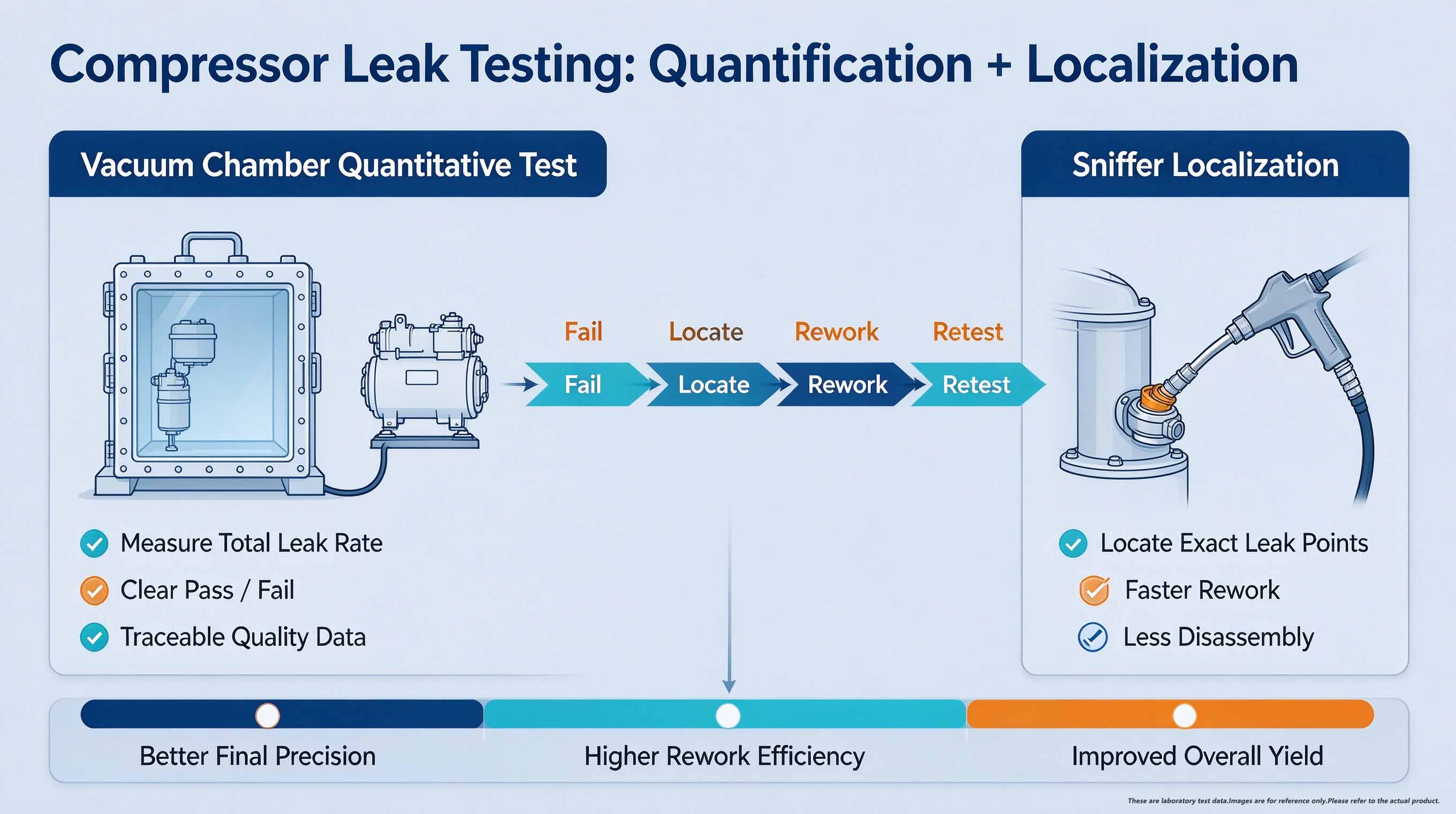

3. Complete Compressors: Quantification + Leak Localization Cuts Rework Time in Half

Compressors are the heart of any refrigeration system. They have the tightest leak requirements, and when they fail, you need to find the leak fast — not have technicians guessing.

The optimal setup is a “vacuum chamber quantification + sniffer localization” combination:

• Vacuum chamber test delivers quantitative total leak rate for final inspection — clear pass/fail with data that feeds directly into your quality system.
• Failed parts go straight to sniffer inspection, locating exact weld or fitting leaks in minutes for targeted rework — no disassembly and hunting for hours.
• Key advantage: Final inspection precision stays high, rework efficiency doubles, and overall yield improves while repair time drops.

4. Field Installation & Service: One Portable Unit = Half a Field Service Team

Leak testing doesn’t only happen on the production line. Field installation, routine service calls and troubleshooting all need leak detection capability.

For these scenarios, don’t try to move production equipment. One portable sniffer helium leak detector does the job:

• Compact and lightweight, works on job sites, in equipment rooms, on outdoor units
• Pinpoint leak location directly — no more soapy water hunts
• Field technicians carry one unit and double their service efficiency

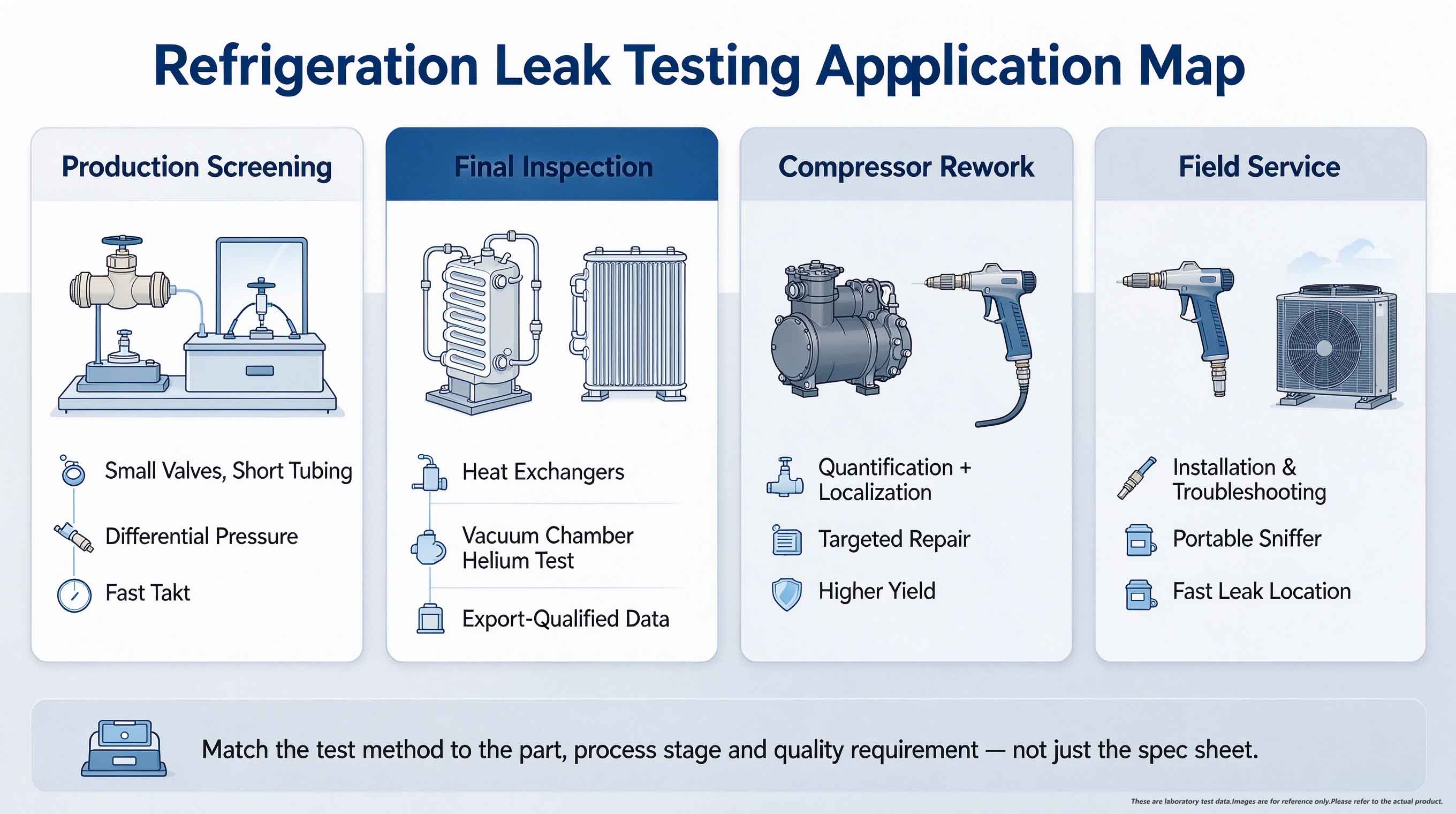

3 Most Common Leak Test Selection Mistakes

1. Blind precision escalation: Specifying the highest available precision for every process and every part, spending multiples more for no real benefit.
2. One solution for everything: Using the same equipment for rough blank screening, in-process test and final inspection — either wasteful upstream or insufficient downstream.
3. Price only on main unit: Comparing only main unit pricing, ignoring tooling customization, helium consumption and after-sales support — ending up with higher total cost of ownership.

Final Thought

Leak testing in refrigeration was never just “buying a machine.” Different parts, different process stages, different market requirements all call for different optimal solutions. Don’t just fixate on equipment specs when selecting. Start with your process, production volume and quality requirements, then match the right solution — fewer detours, fewer pitfalls.
